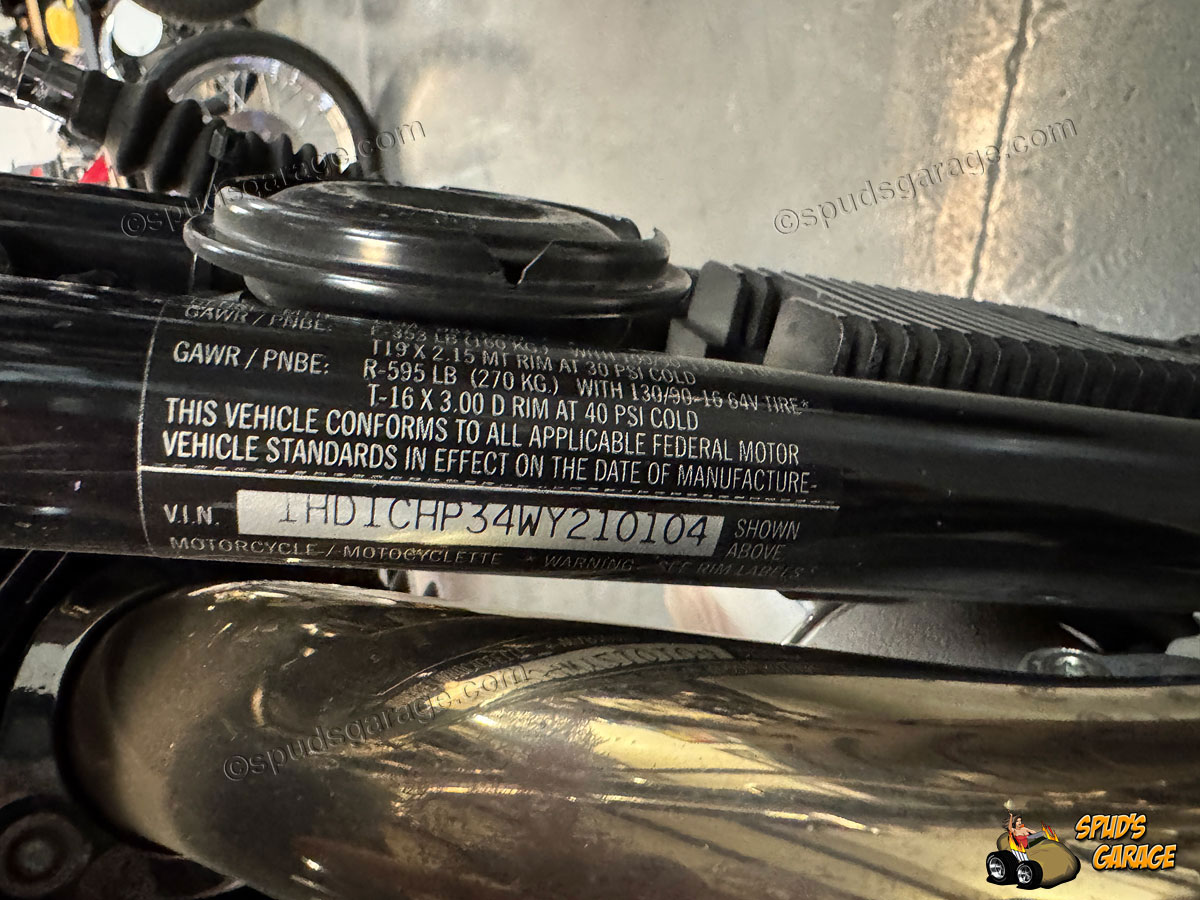

Vehicle ID#1HD1CHP34WY210104:
“1HD” = manufactured by Harley-Davidson in the United
States, “C” = model line, “H” Engine type V-twin, “P”
Sportster XL1200, “3” = (GVWR) class, “W” = Year code 1998
(Harley-Davidson), Y210104 = Sequential production number.
Engine/ID#CHPW210104:

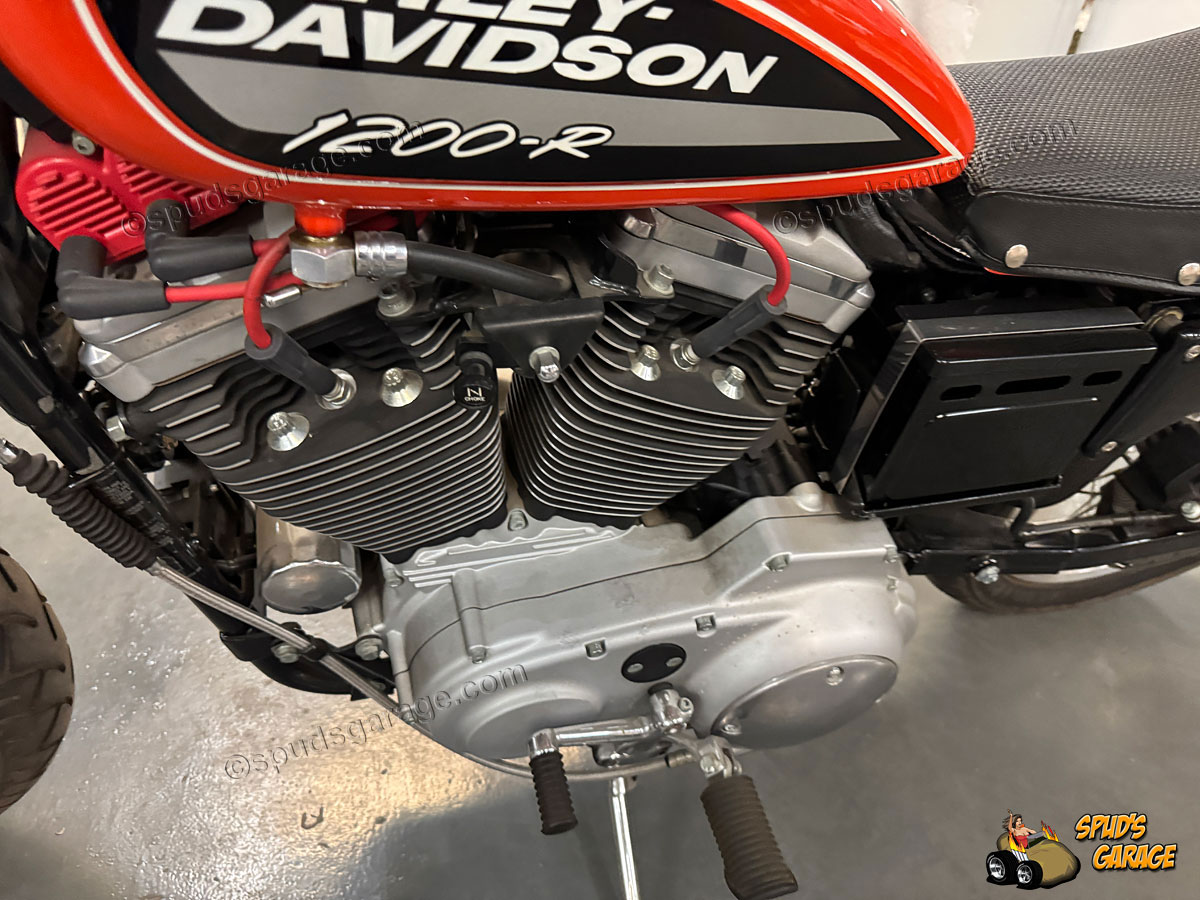

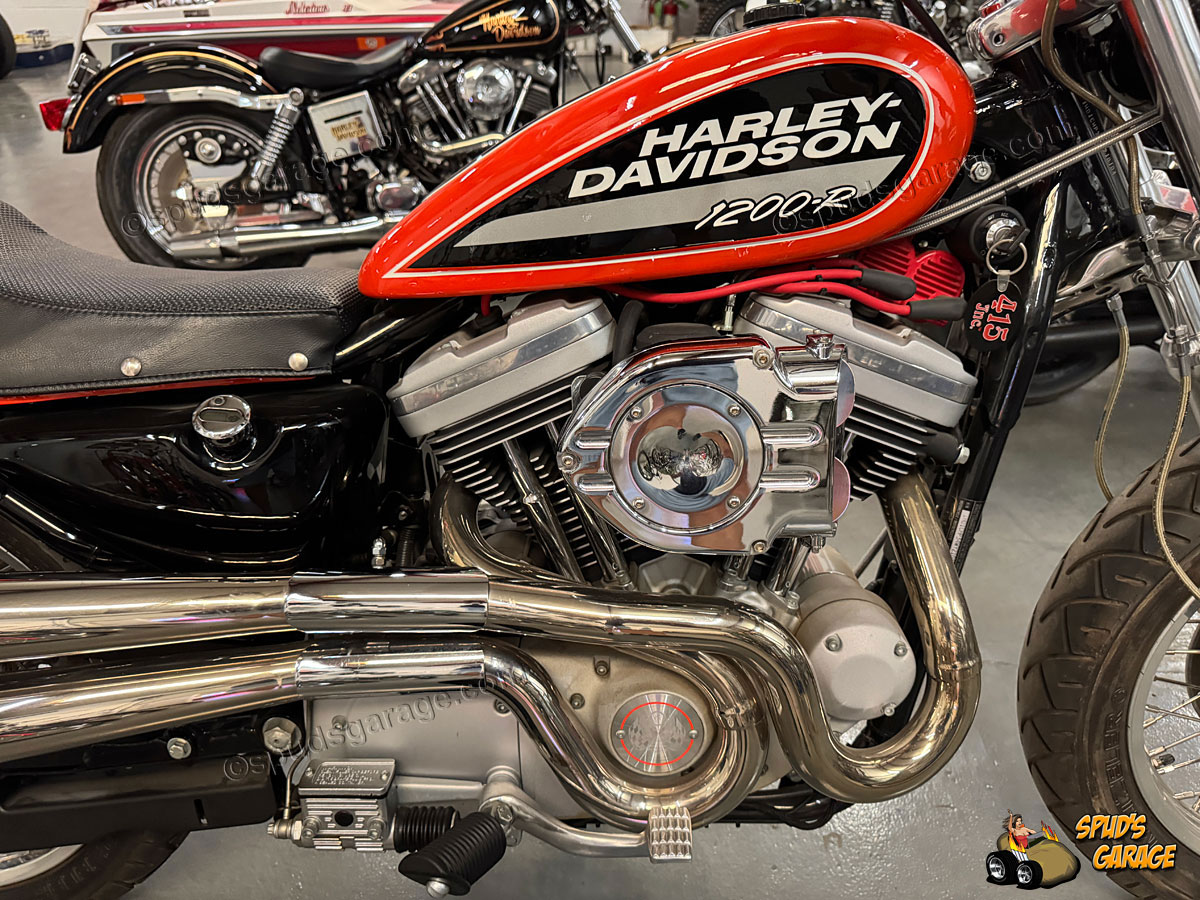

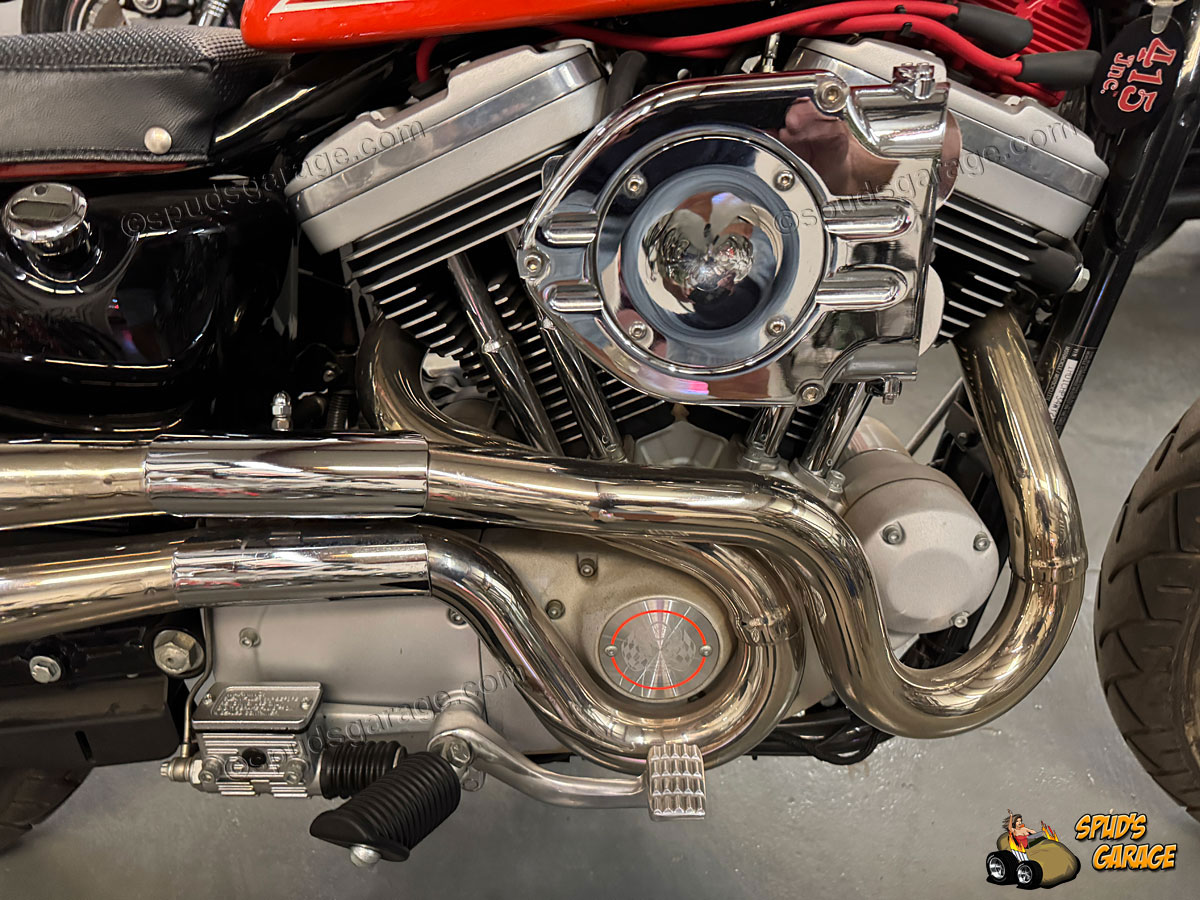

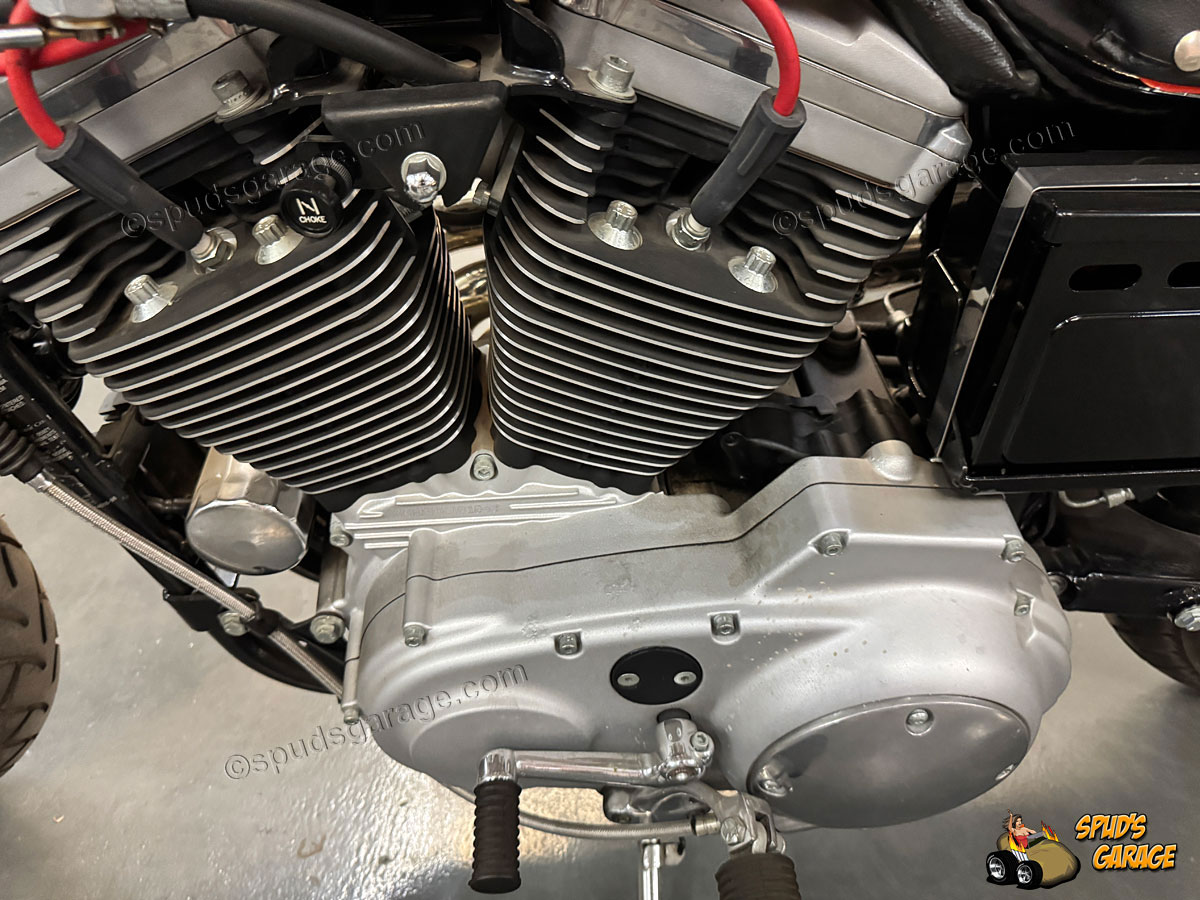

Air-cooled, 45° V-Twin, OHV (pushrod-operated overhead
valves), 2 valves per cylinder, Displacement: 1,199 cc
(73.2 cubic inches), Bore x Stroke: 88.8 mm x 96.8 mm (3.5
in x 3.8 in), Compression Ratio: 9.7:1, 40 mm Keihin CV
carburetor, Ignition: Electronic/digital CDI, Starting:
Electric, Lubrication: Dry sump with spin-on filter; oil
capacity 2.8 quarts (with filter), Max Power: 58 hp @
5,200 rpm, Torque: (64 lb-ft) @ 3,900 rpm.
Drive-Train: 5-speed
manual gearbox, Clutch: Wet, multi-plate, Final Drive:
Belt, Gear Ratios: 1st: 9.315, 2nd: 6.653, 3rd: 4.948,
4th: 4.102, 5th: 3.517.
Suspension/Frame:
Mild steel tubular, mild steel rectangular rear swing-arm,

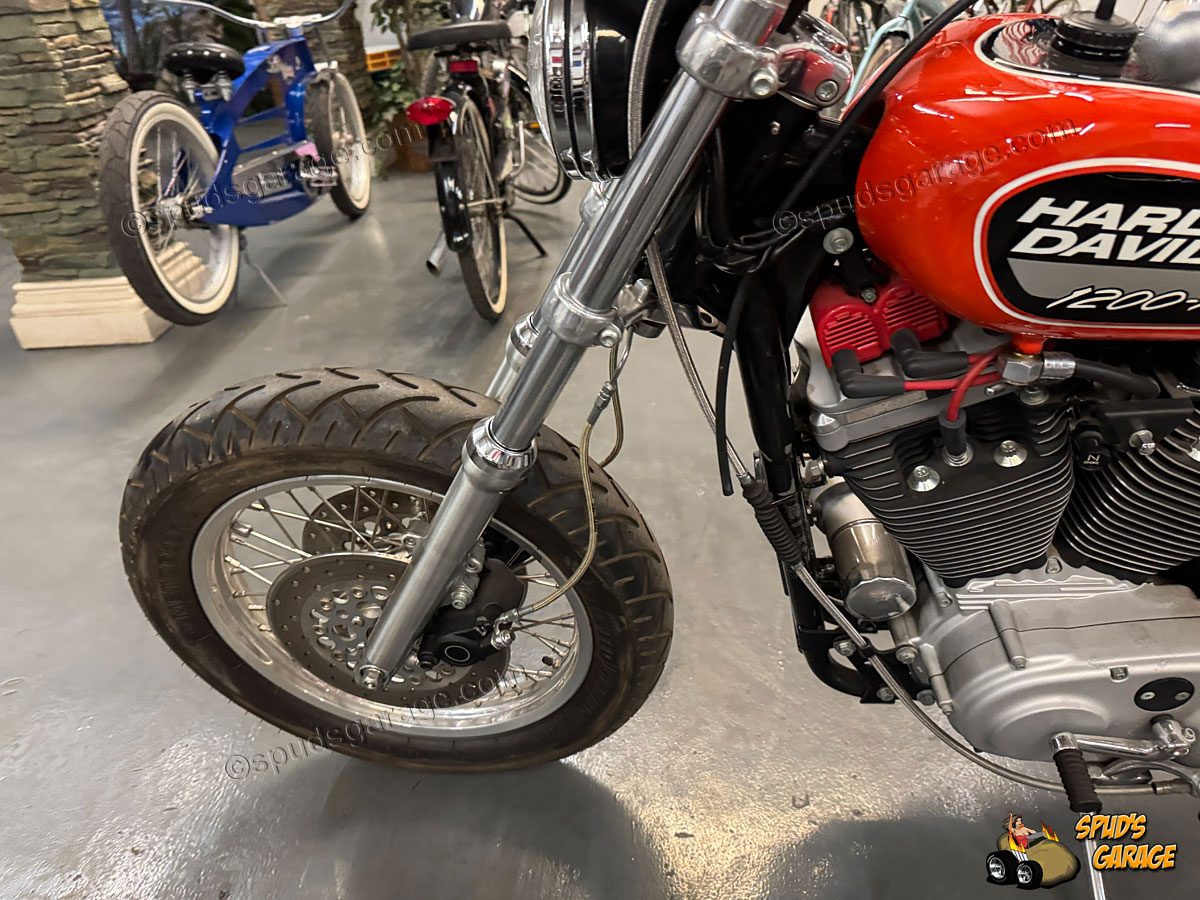

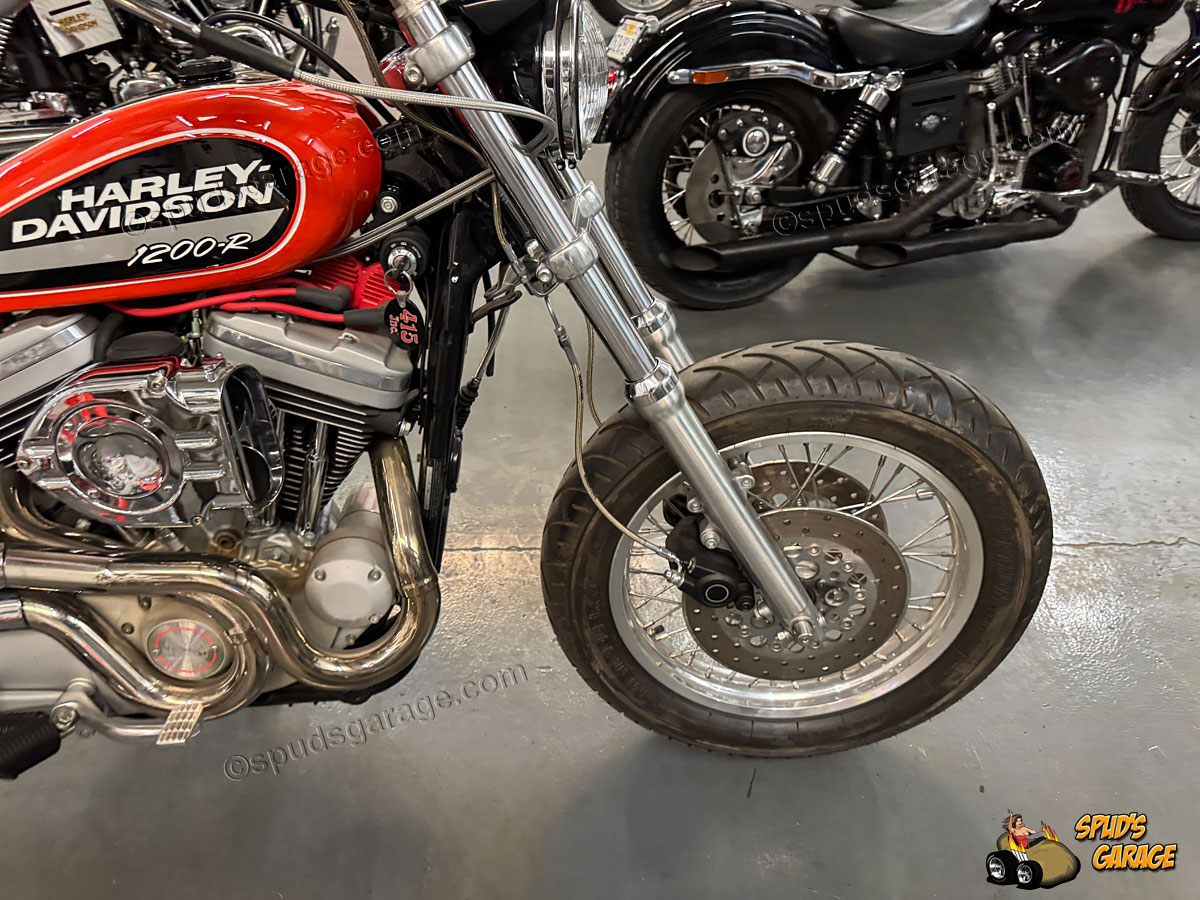

Front Suspension: 39 mm telescopic forks; travel (5.7 in),

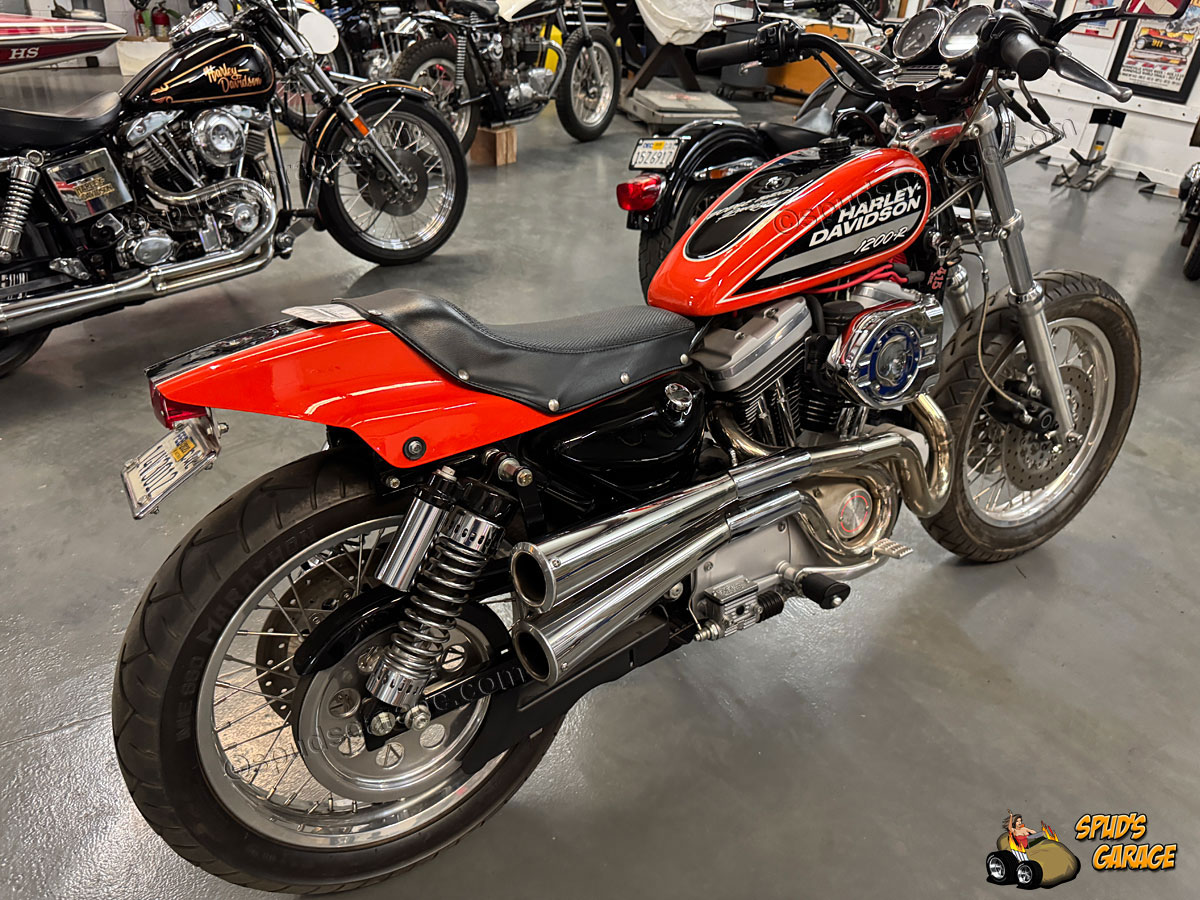

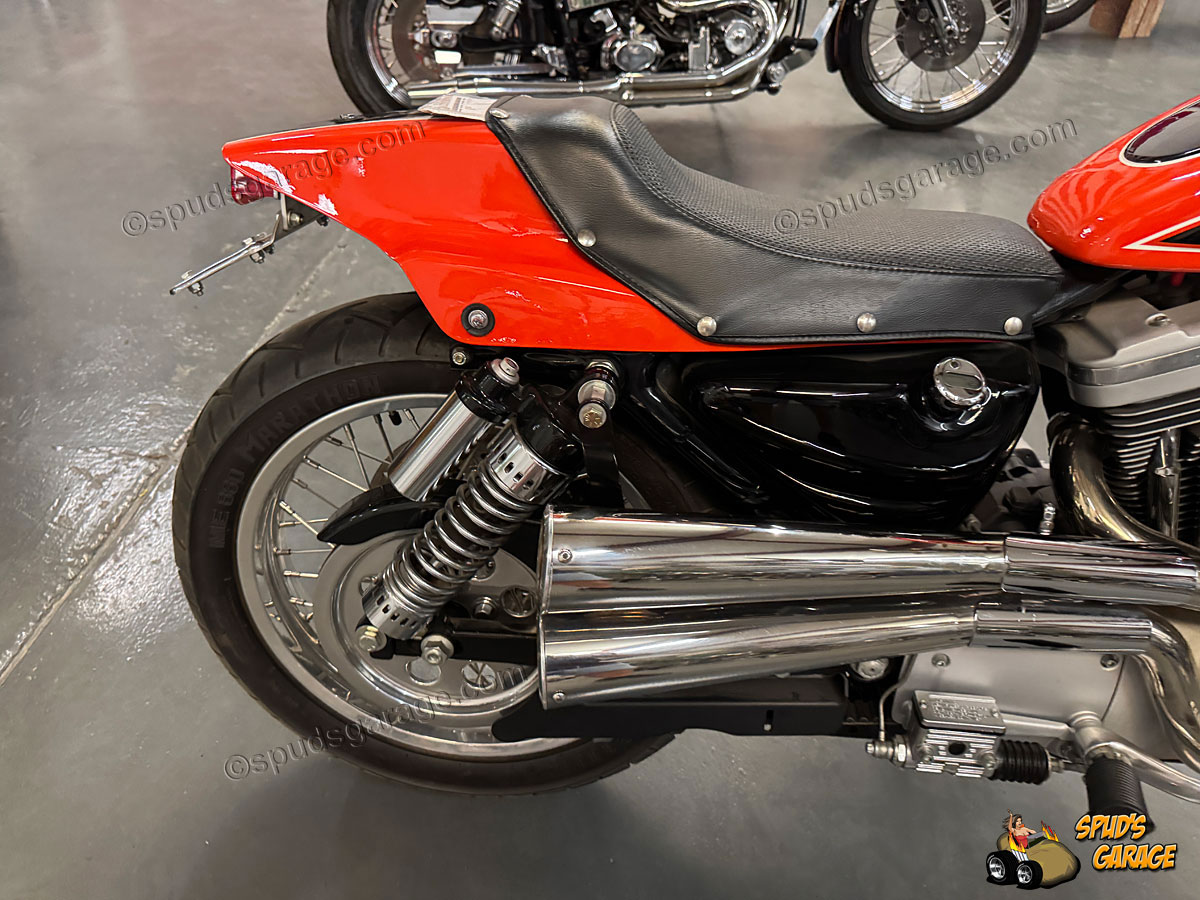

Rear Suspension: Dual coil-over shock absorbers, preload
adjustable; travel (2.1 in), Rake: 30°, Trail: 107 mm (4.2
in)
Brakes: Front:
Single 292 mm disc 2-piston caliper, Rear: Single 292 mm
disc 1-piston caliper

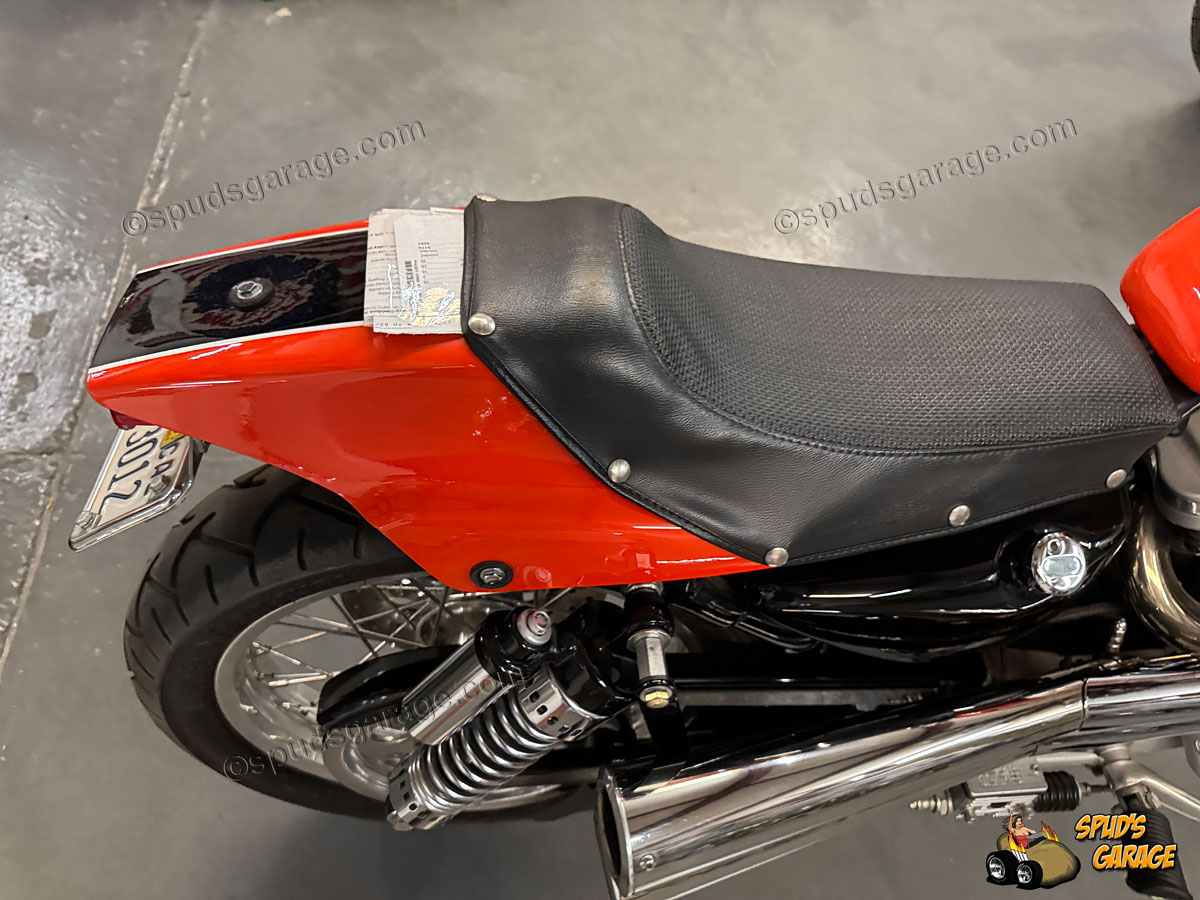

Condition:

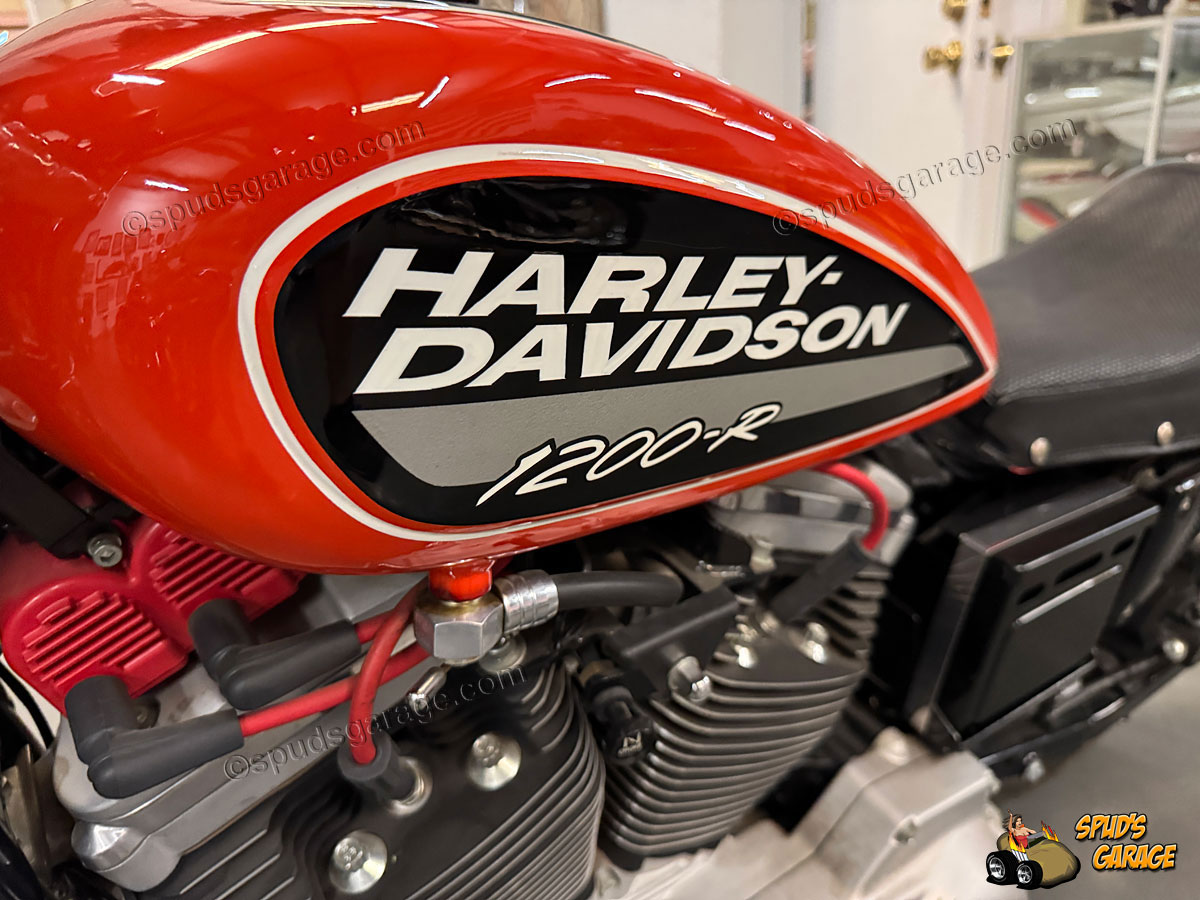

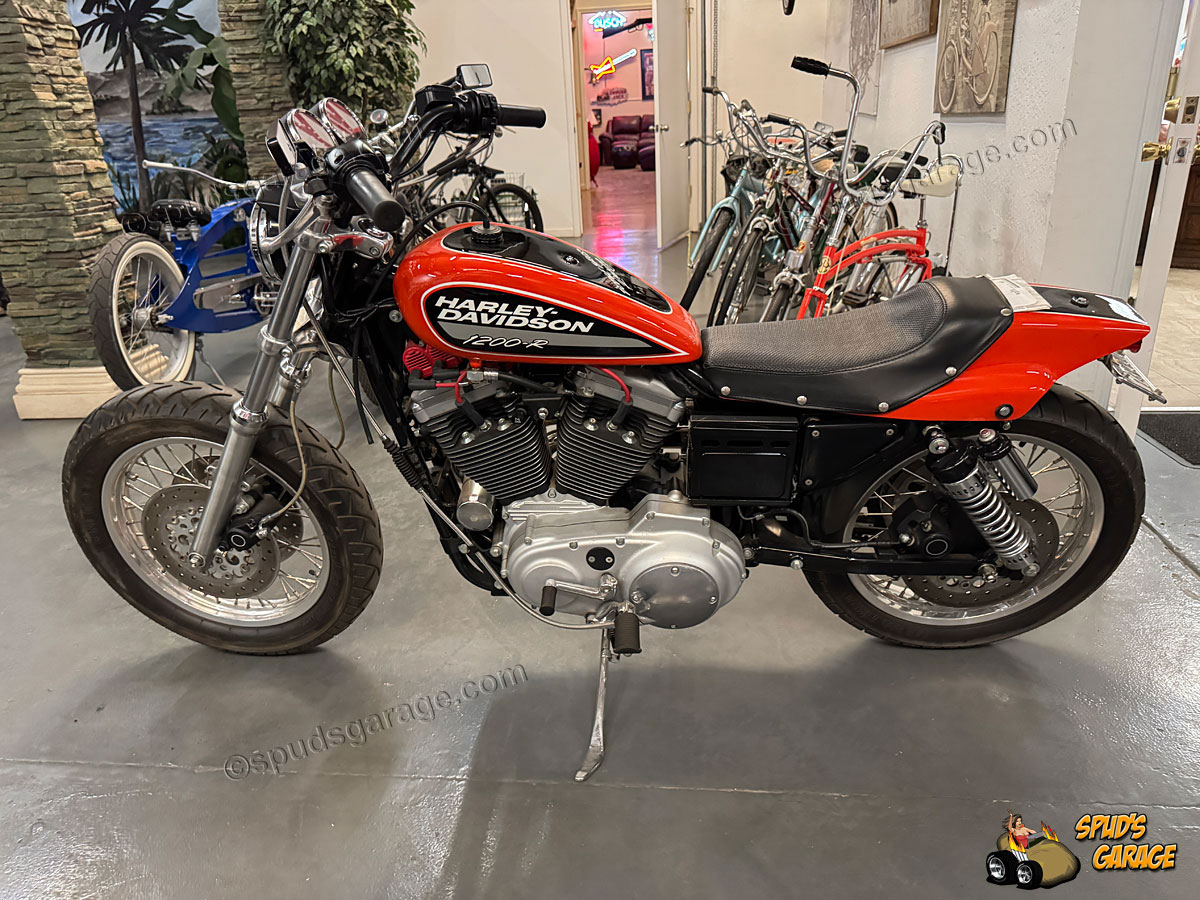

Observations, excellent cosmetic condition, appears as
factory with mild cosmetic mods and/or mechanically

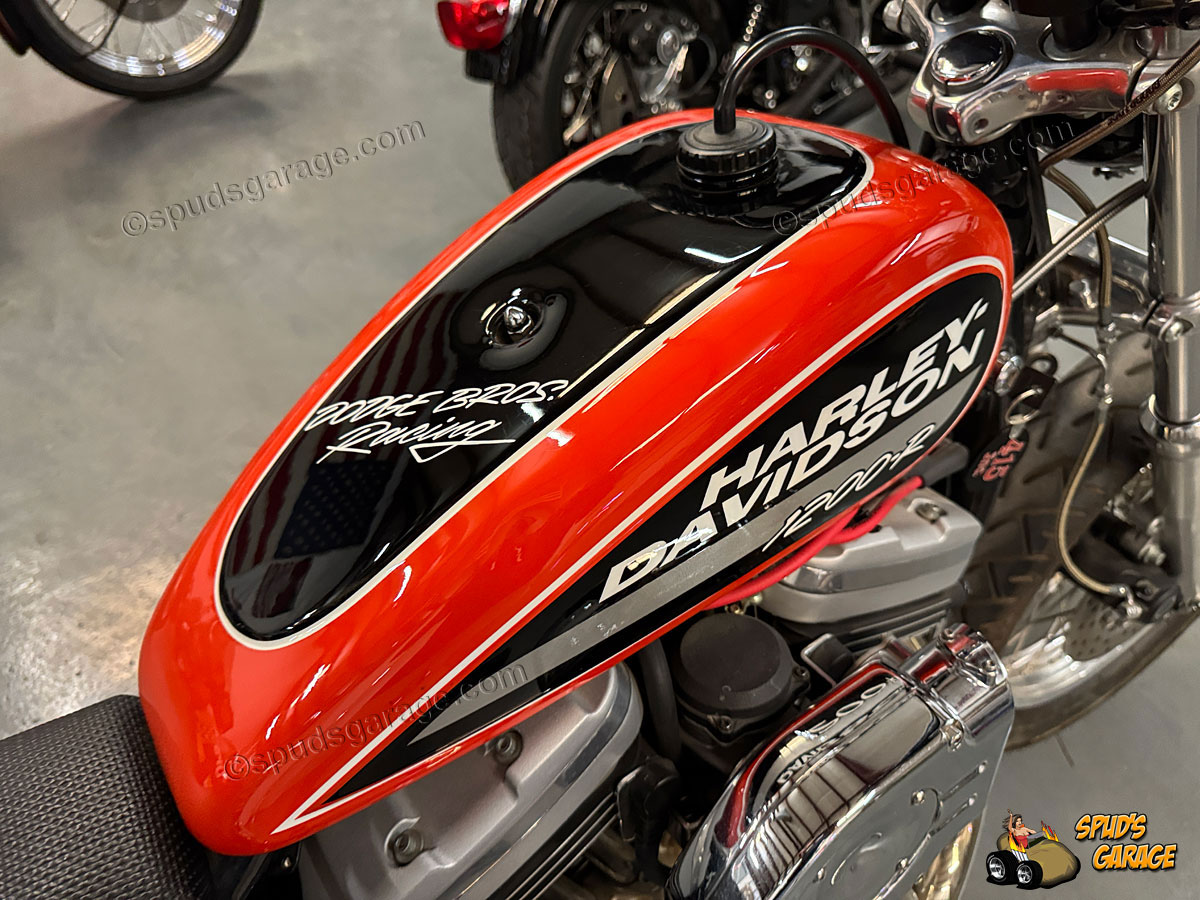

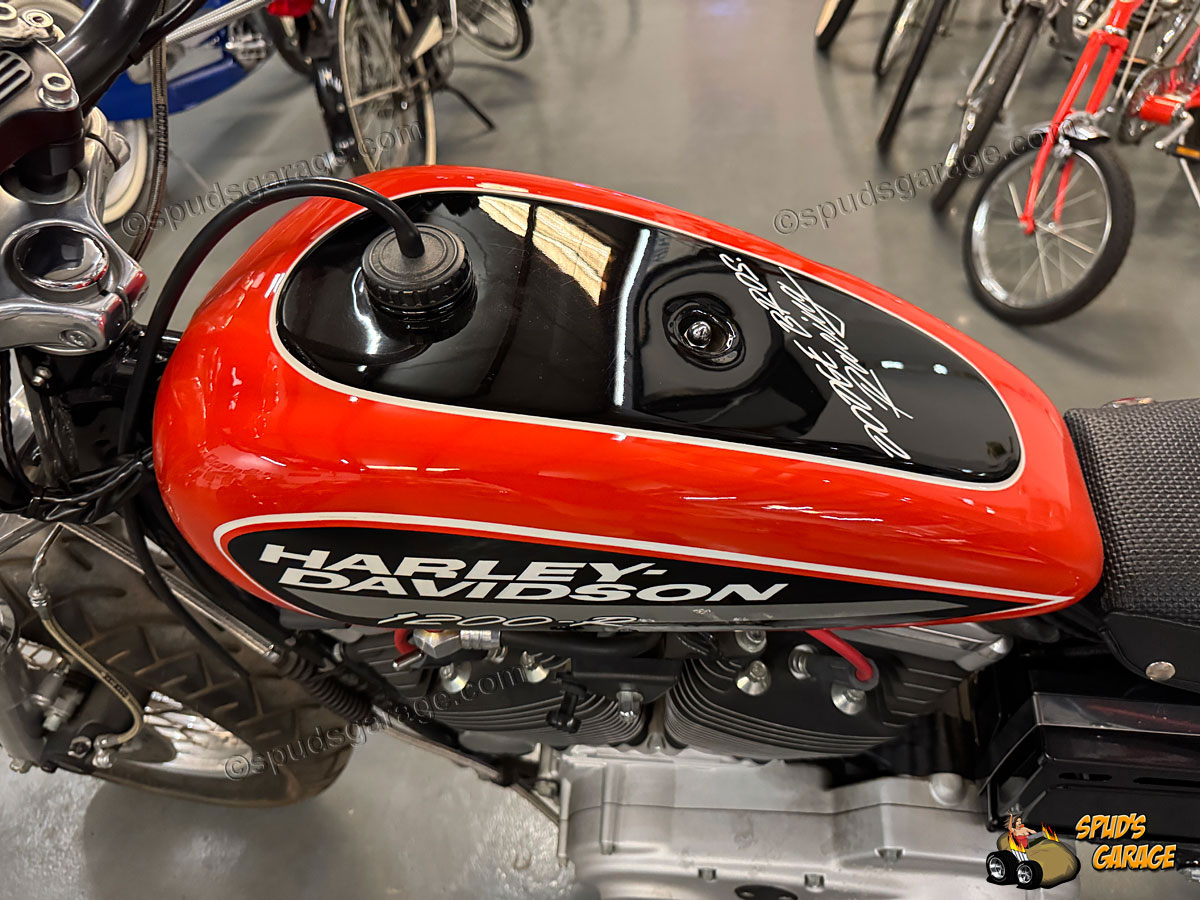

non-modified except for the upper fuel tank “Dodge Bros
Racing,” this "could be" a personalized touch by the prior
owner or a custom shop. As last ridden, known as
operational prior to long-term indoor static display, not
currently operational. |
